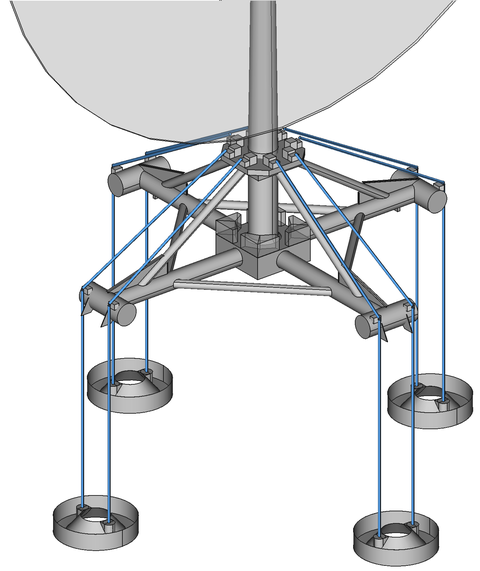

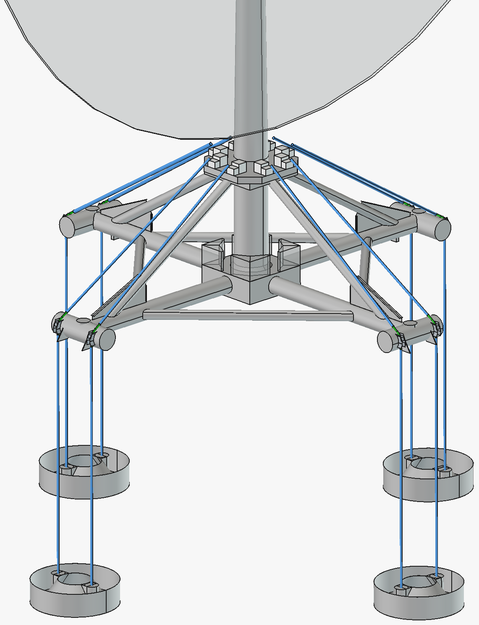

Grip-TLP : a gravity anchor type TLP for FOWT

※ TLP ( Tension Leg Platform ) , FOWT ( Floationg Offshore Wind Turbine )

Gravity anchor having containers for filling with rocks and/or sand
- Gravity anchors can be installed in both sandy and rocky areas.
- Minimize civil engineering work on the seabed

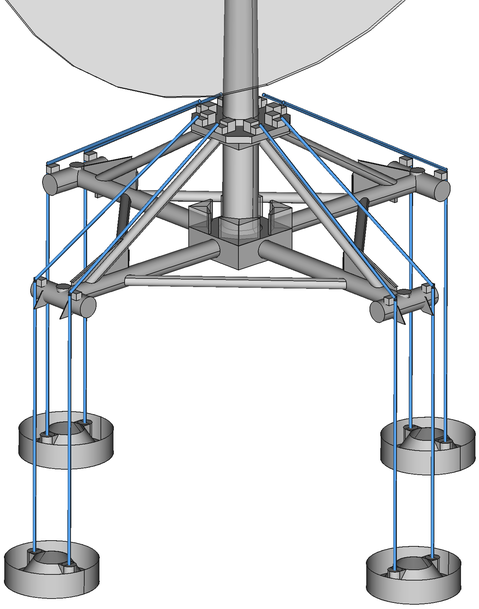

4-legs, each leg has 2-tendons
- Initial tension is lower than that of 3-legged TLP
- Redundant for tendon rupture

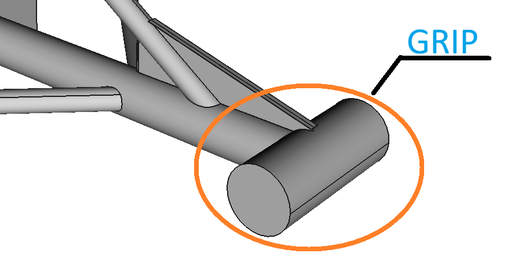

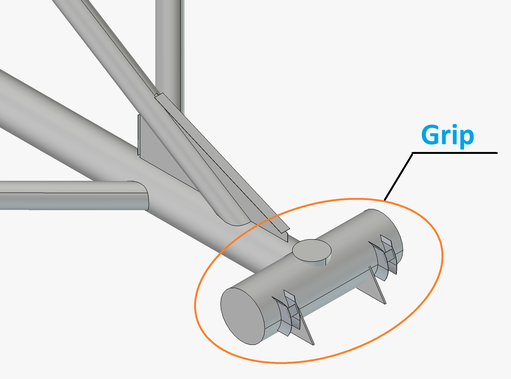

Long arms with GRIP
- Long arm : low initial tension
- GRIP : act as an outrigger in towing condition
Each tendon is secured to the mooring equipment on deck
- Easy handling
- The load on the brace is reduced
